Description

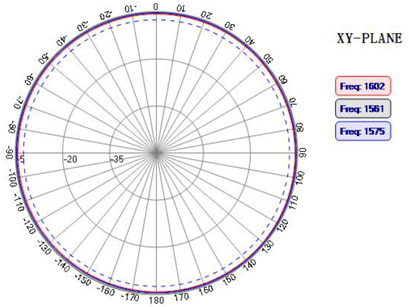

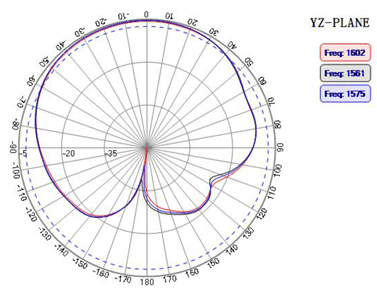

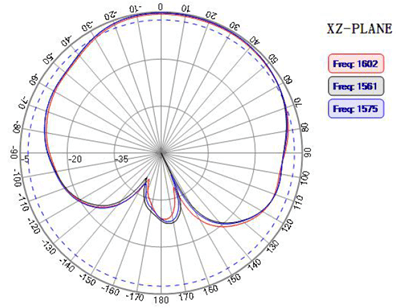

Radiation Pattern – GNSS Antenna
| GNSS Antenna Center Frequency | 1176Mhz/1226MHz/1575MHz |
|---|---|
| GNSS Antenna Polarization | RHCP |
| GNSS Antenna Axial Ratio | 3dB（max） |
| GNSS Antenna Peak Gain | ≥4dBi |
| GNSS Antenna V.S.W.R | ≤1.5 |
| GNSS Antenna Impedance | 50 Ω |
| Horizontal Coverage Angle | 360° |
| Phase Center Error | ±2mm |
| LNA Gain | 40±2dB |
| LNA Noise Figure | ≤2.0dB |
| LNA V.S.W.R | ≤2.0 |
| LNA Supply Voltage | 3~16V DC |
| Passband fluctuation | ±1.5dB |
| Current Consumption | ≤60mA |
| Connector | TNC-K, fully customized |
| Mounting Method | Screw TNC-K, fully customized |
| Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% |
| Environmentally Friendly | RHCP |
| Ingress Protection | IP67 (exclude Air vent in screw hole) |
| Radome Material | ASA |
