Description

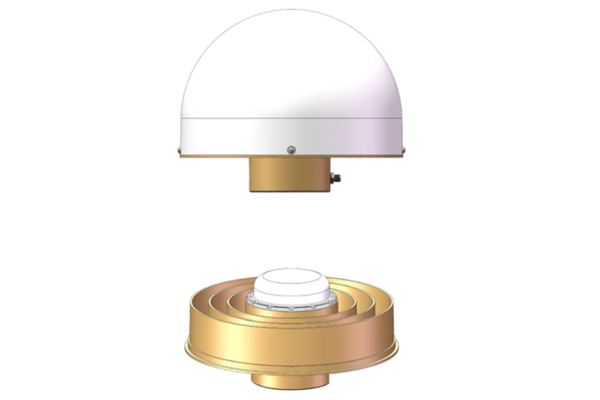

Antenna Mechanical Drawing
| GNSS Antenna Center Frequency | 1176Mhz/1226MHz/1575MHz |
|---|---|
| GNSS Antenna Polarization | RHCP |
| GNSS Antenna Axial Ratio | 3dB（max） |
| GNSS Antenna Peak Gain | ≥7dBi |
| GNSS Antenna V.S.W.R | ≤2.0 |
| GNSS Antenna Impedance | 50 Ω |
| Horizontal Coverage Angle | 360° |
| Phase Center Error | ±1.5mm |
| LNA Gain | 45±2dB |
| LNA Noise Figure | ≤1.5dB |
| LNA V.S.W.R | ≤2.0 |
| LNA Supply Voltage | 3~16V DC |
| Passband fluctuation | ±1.5dB |
| P1dB | ≥0dBm |
| Current Consumption | ≤60mA |
| Connector | TNC-K, fully customized |
| Mounting Method | Screw/Adhesive, fully customized |
| Operating Temperature | -40℃~+85℃ |
| Storage temperature | -55℃~+85℃ |
| Relative Humidity | Up to 95% (Non condensing) |
